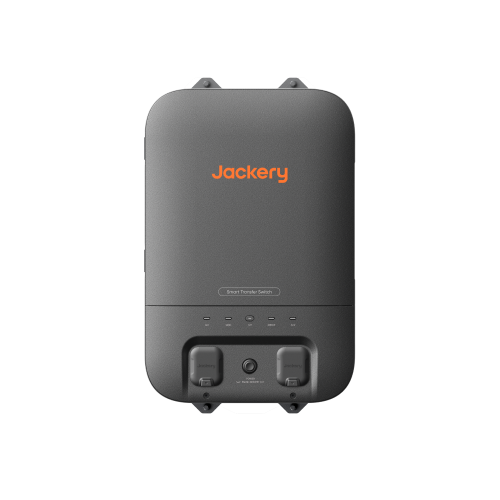

Jackery Smart Transfer Switch
Notify Me When Available on Sale
Leave your email below to get a notification when the product is available.
Pre-order Now! And be among the first to receive shipments starting December 27th!
-
Seamless Power Switch: Provides UPS backup within ≤20ms during power outages, ensuring uninterrupted operation.
- Eco-Friendly & Silent: Designed to integrate with solar panels and rooftop PV systems via Jackery Explorer 5000 Plus for sustainable energy use.
- Energy Savings: Charging-discharging mode helps reduce electricity costs.
- Compact & Maintenance-Free: Lightweight, easy to install, and requires no maintenance.
- Smart App Control: Enables real-time monitoring and energy management.
2-5 business days shipping
30-Day Money back
SPECIFICATIONS
SPECIFICATIONS | Jackery Smart Transfer Switch |
Model No. |
JA-TS02A |
AC Voltage (Nominal) |
120V/240V~ 60Hz |
Feed-In Type |
Split Phase |
Maximum Input Current |
100A Grid / 60A Power Station |
Maximum Output Current |
60A Home Load / 33.4A Power Station |
Maximum Input Short-Circuit Current |
10KA |
Overvoltage Category |
IV |
UPS |
≤20ms |
Enclosure Type (Distribution Panel) |
NEMA Type 1 |
Number of Load Branches |
12 |
Main Circuit |
2 AWG |
Branch Circuit |
14 AWG 12 AWG 10 AWG |
Communication |
Wi-Fi and Bluetooth |
Operating Temperature |
-20°C~45°C (-4°F~113°F) |
Weight |
About 25.57 lbs/11.6 kg |
Dimensions |
22 x 14.7 x 7.87 in/56 x 37.4 x 20 cm |

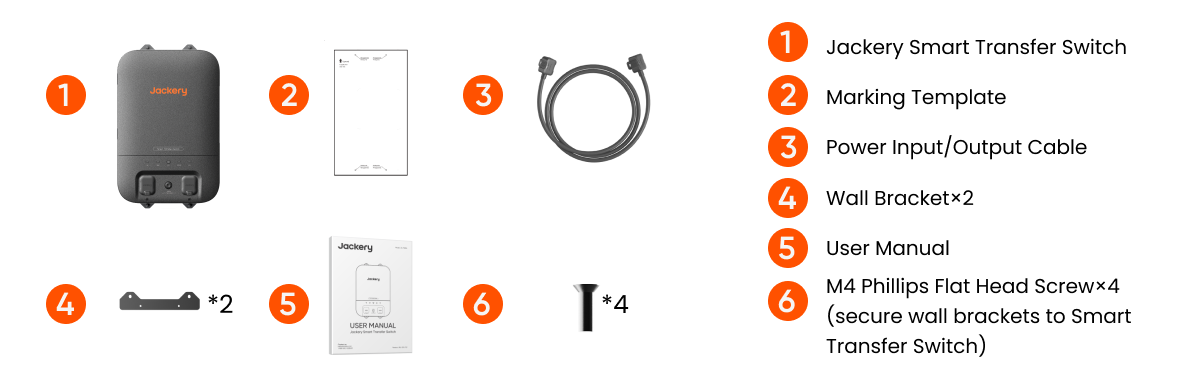

Package List |
Jackery Smart Transfer Switch Power Input/Output Cable User Manual |
User Manual |
|
Jackery Smart Transfer Switch Installation Training |
|
Jackery Smart Transfer Switch Removal Training |
