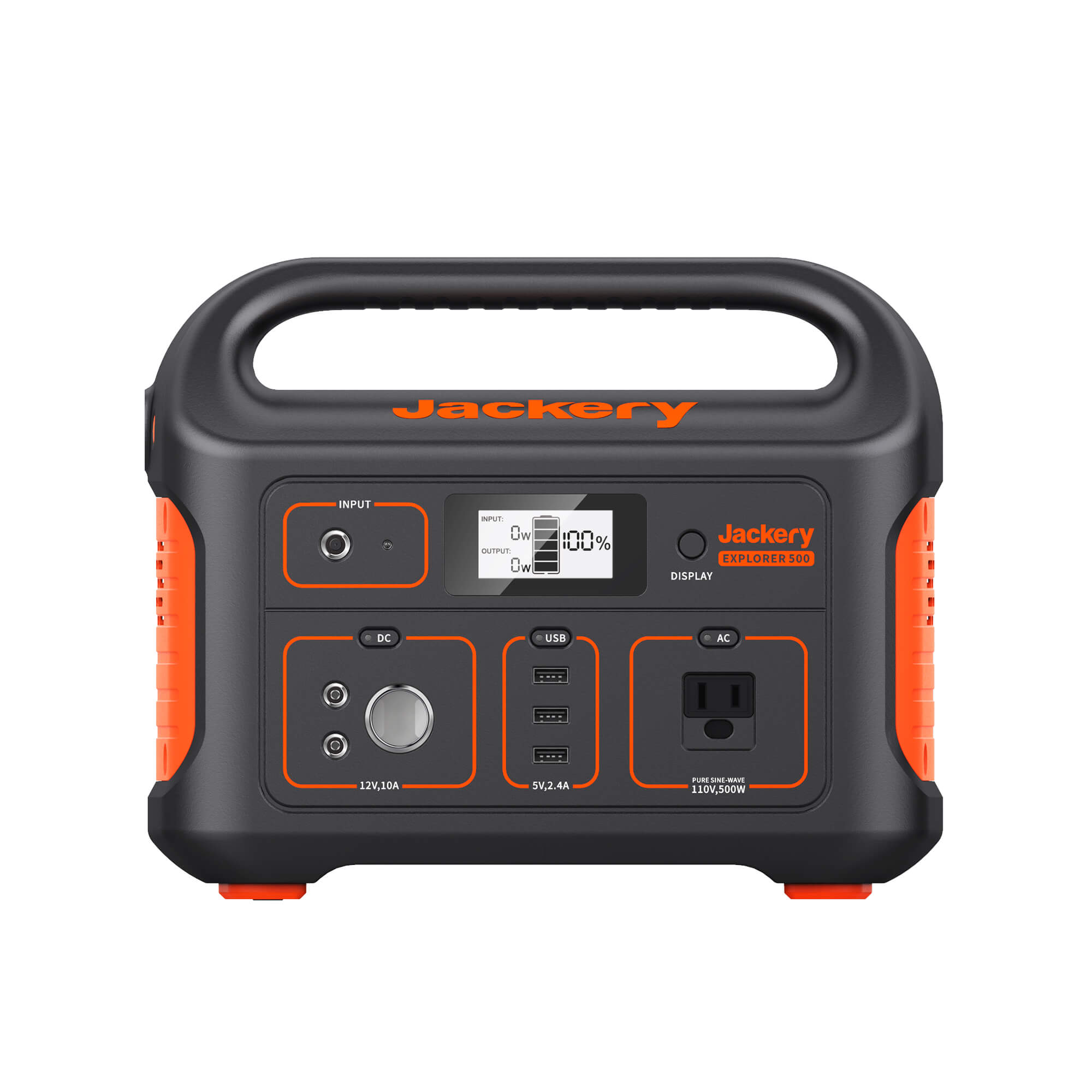

Jackery Explorer 500 Portable Power Station charges low to high-power appliances for long hours. With a high battery capacity of 518Wh, a foldable handle, an ergonomic design, and industry-leading BMS technology, the power station is ideal for outdoor adventurers and emergency home backup solutions. It is extremely easy to carry, with a weight of just 13.32 lbs.
High Battery Capacity

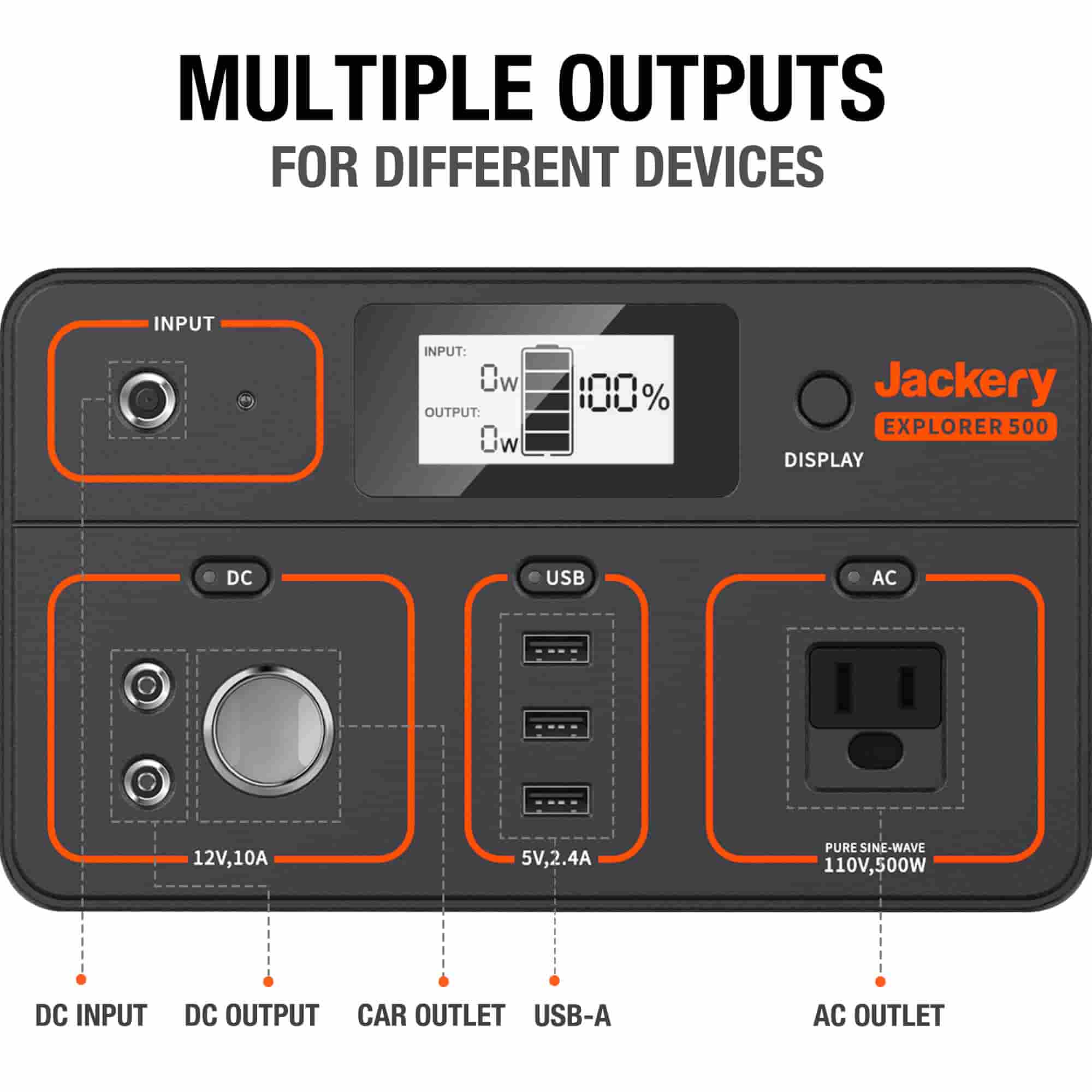

Jackery Explorer 500 Portable Power Station features 1 * AC outlet, 2 * DC ports, 1 * car port, and 3 * USB-A ports to charge low to high-power appliances, including air pumps, CPAP machines, TV, mini-refrigerators and more. Its compact size and lightweight design make the power station ideal for road trips and RV camping.

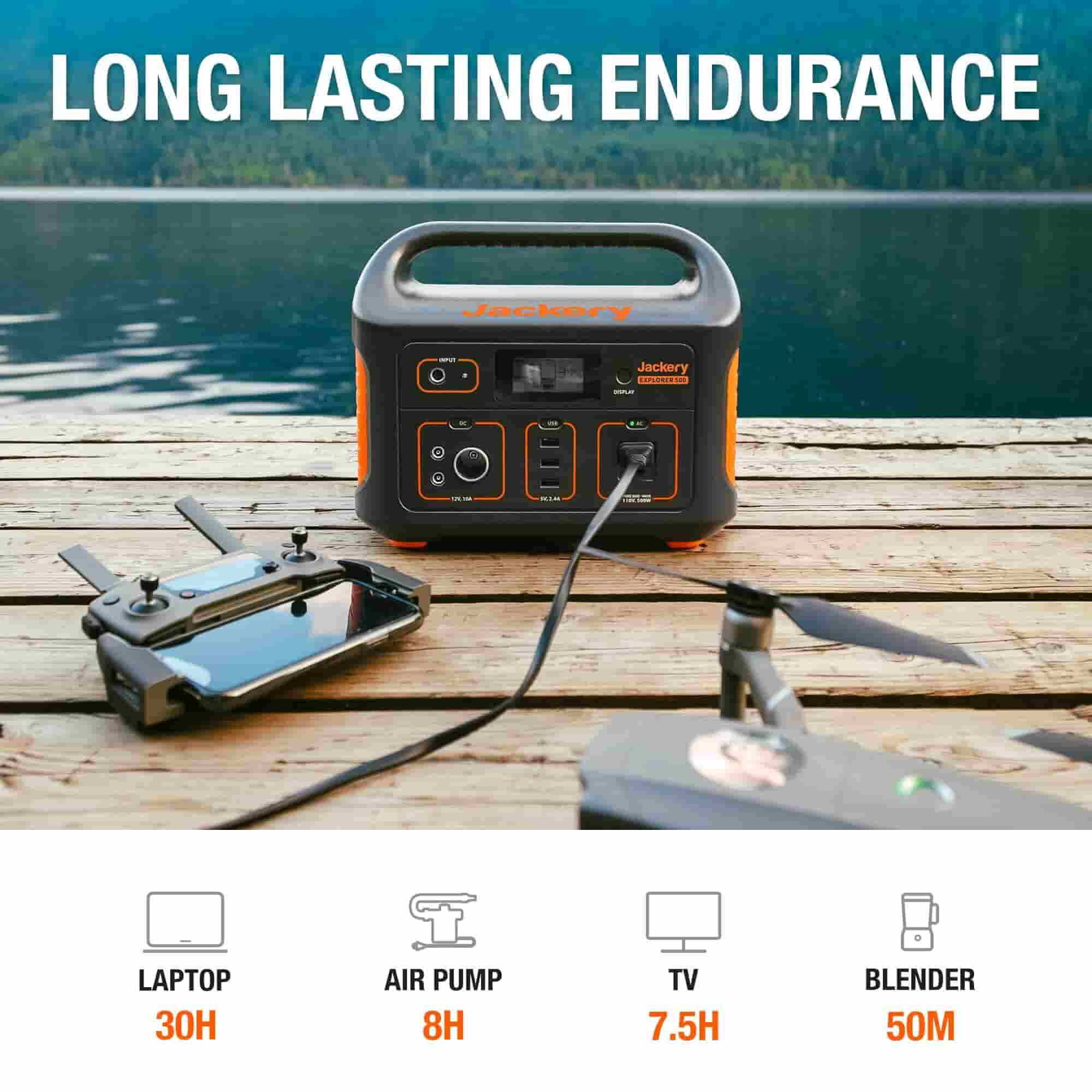

Phone (18W)
22.6 Charges
TV (60W)
7.5 H
Blender (300W)
7 H
Space Heater (350W)
1.5 H
Coffee Maker (550W)
0.8 H
Toaster (650W)
0.8 H
Ice Shaver (700W)
1.8 HRunning Time Simulator
To power with Explorer 500 (518Wh Capacity)
Please enter the wattage of the appliance (not exceeding 500W)
W
0
Hrs
Multiple Charging Methods Available
Multiple Charging Methods Available
Long Battery Life
Ultimate Protection
Ultimate Protection
Lightweight and Portable
Strong and Reliable
Strong and Reliable
Clean and Green Solution
6 Months Warranty
6 Months Warranty
0
Hrs
Recharging Time
0
Wh
Sustainable Energy Saving
PREPARING YOUR SOLAR GENERATOR
The Explorer 500 can be fully charged under straight full sun in 9.5 hours by connecting SolarSaga 100W solar panel.

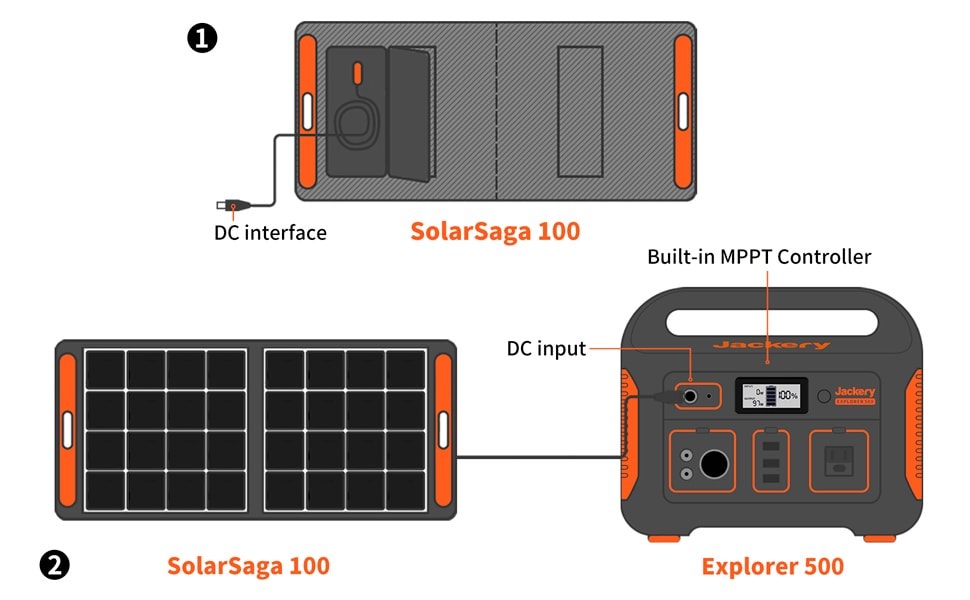

Solar recharging steps:
1. Find the DC interface on the back of SolarSaga 100;
2. Connect the DC interface of SolarSaga 100 with DC input of Explorer 500
Notes:
1. Solar panel types and quantity depends on your purchase.
2. Buy 2 SolarSoga, get 1*Solar Panel Connectors.
3. Buy 4 or 6 SolarSoga, get 2*Solar Panel Connectors.
* This product (portable power supply) can supply power to your device in the temperature range of -10 to 40 degrees Celsius (-10 to 65 degrees Celsius for solar panels). If the operating temperature is outside the above range, this product may not work.
A: Please note that the AC output port can only charge/power devices that operate at less than 500-Watt. Once exceeding, the Explorer 550 will shut off automatically. Please refer to your device specification before purchase.
A: Working time = 500Wh* 0.85 / operating power of your device.
For reference, assuming power consumption of your device is 60W (might be a box fan), working time will be 500Wh*0.85/60w=7hrs (rough calculated) .
Please note: actual power consumption varies from different usages, please consult Jackery for better purchase decision.

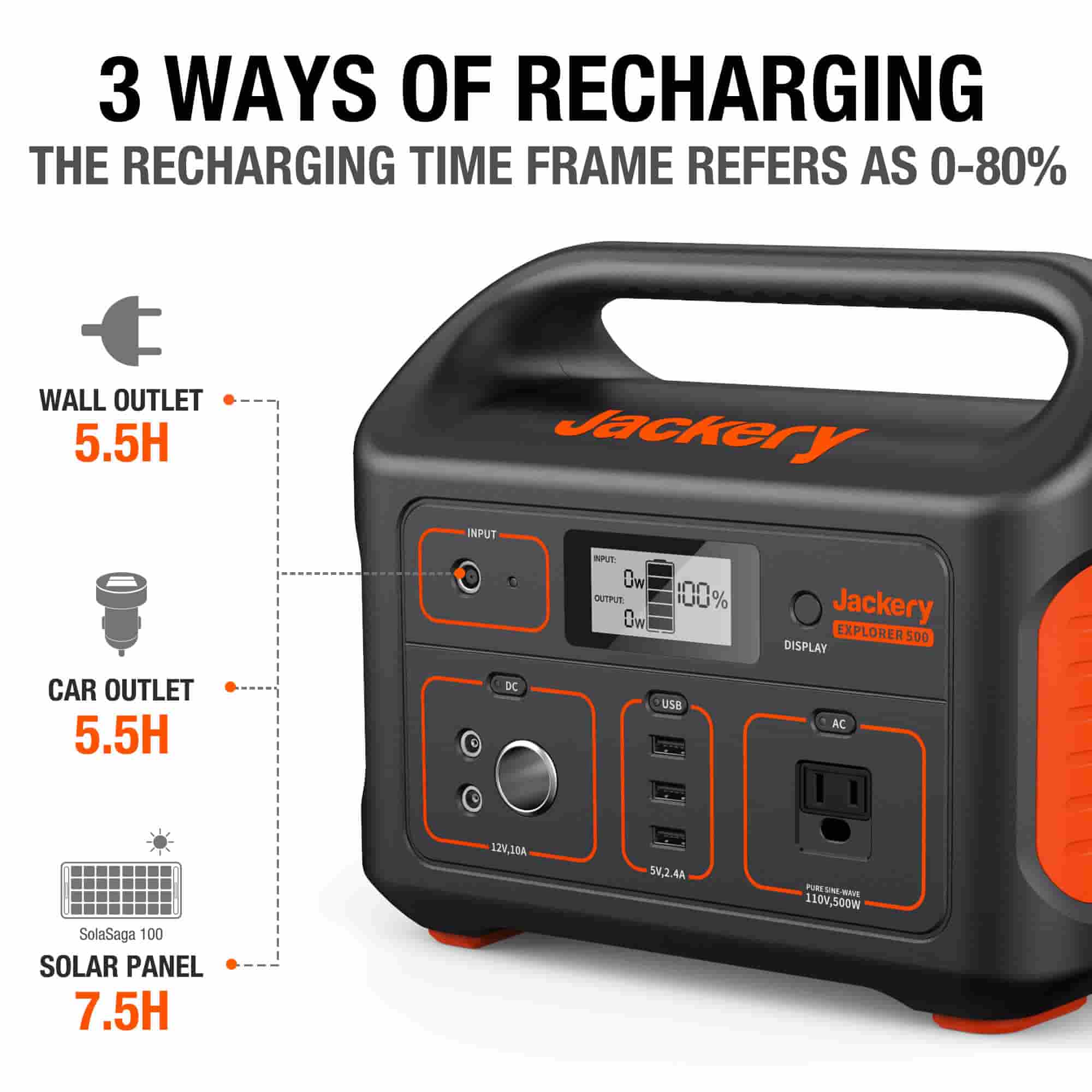

A: Within 7.5 hours from an AC wall outlet; Also another two recharge backup choices for your convenience, recharge from car port around 7.5 hours, and around within 9.5 hours from Jackery Saga 100W solar panel (Sold Separately).
A: To check the charge level of the Explorer 550, refer to the LCD Battery Display.
A: Explorer 550 contains a battery pack which consists of an array of cylindri cal 18650 lithium-ion battery cells with high energy density.

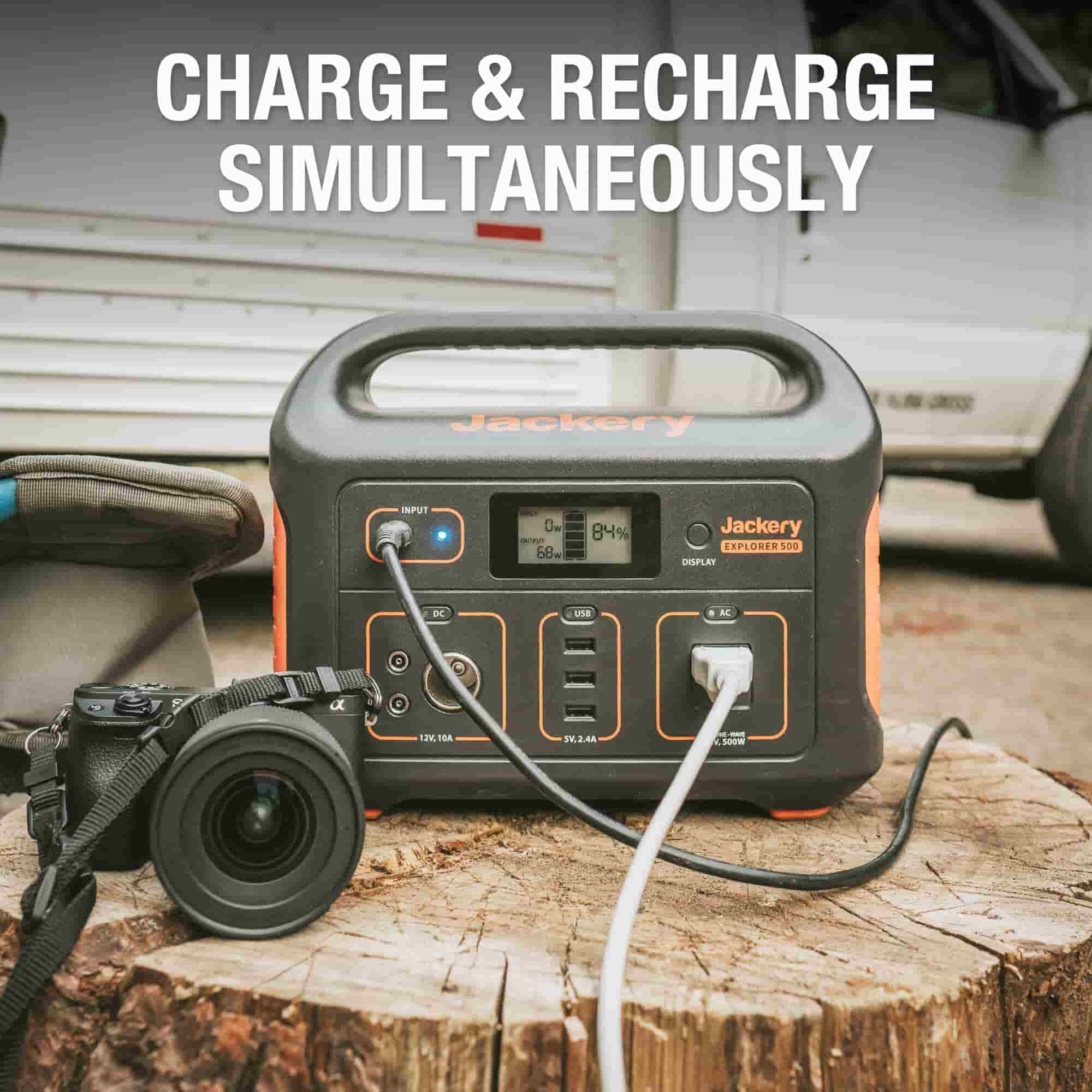

A: Yes, you can use the Explorer 550 to charge devices, while it's being re-charged at the same time.
Note that the total rated wattage should be under 500w (surge 1000w). If the device power is outside this range, the Explorer 500 may shut down.
Solar Recharging Steps:
1. Find the DC interface on the back of SolarSaga 100;
2. Connect the DC interface of SolarSaga 100 with the DC input of Explorer 500
Please Keep the Following in Mind While Solar Recharging:
1. Recharging time varies depending on location, temperature, weather, etc. Therefore, the actual recharge time may be different.
2. Keep your portable power station away from heat and direct sunlight to extend its life span during recharging.
The Jackery Explorer 500 offers power-to-go in a compact, lightweight design featuring multiple connections to charge your mainstream gear and more. Never worry about a wall outlet or long extension cords. So feel free to go and explore the great outdoors and run your appliances like a blender, pellet smoker, projector, and tools. It can also be used as an emergency backup power supply to run lights, laptops, phones, a small fridge, a CPAP, and other devices in the event of a power outage.
Note that the total rated wattage should be under 500w (surge 1000w). If the device power is outside this range, the Explorer 500 may shut down.

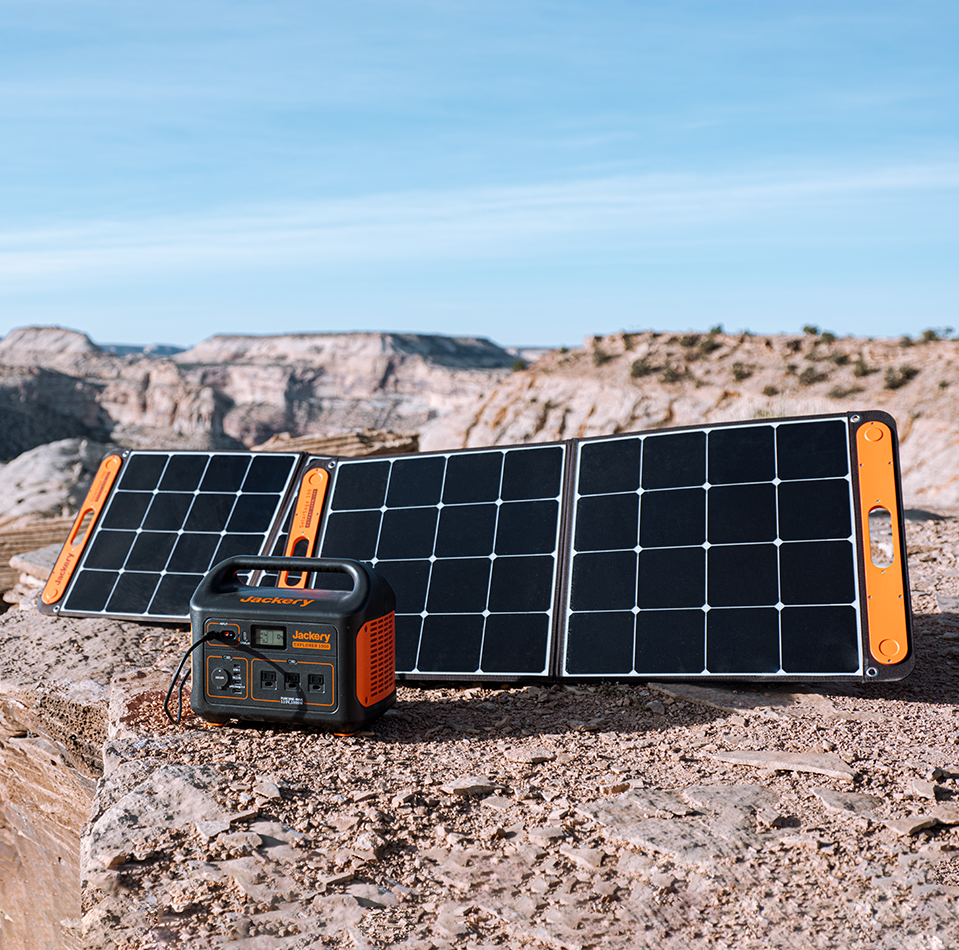

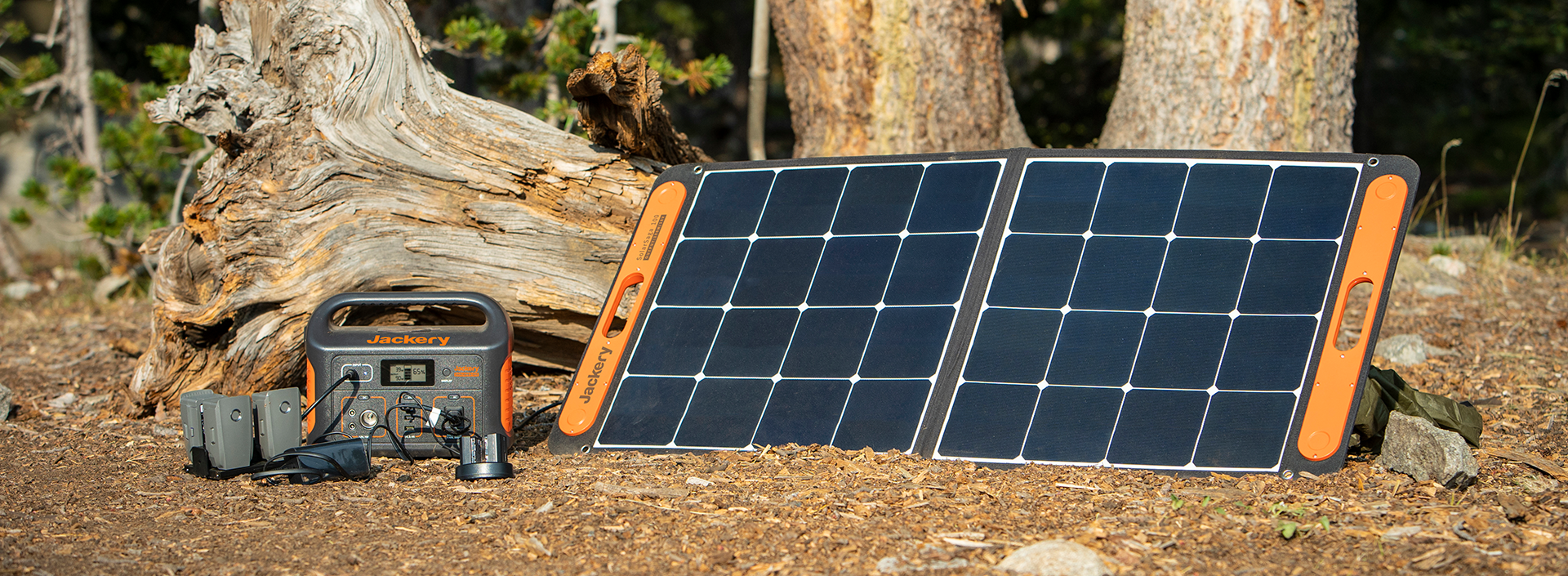

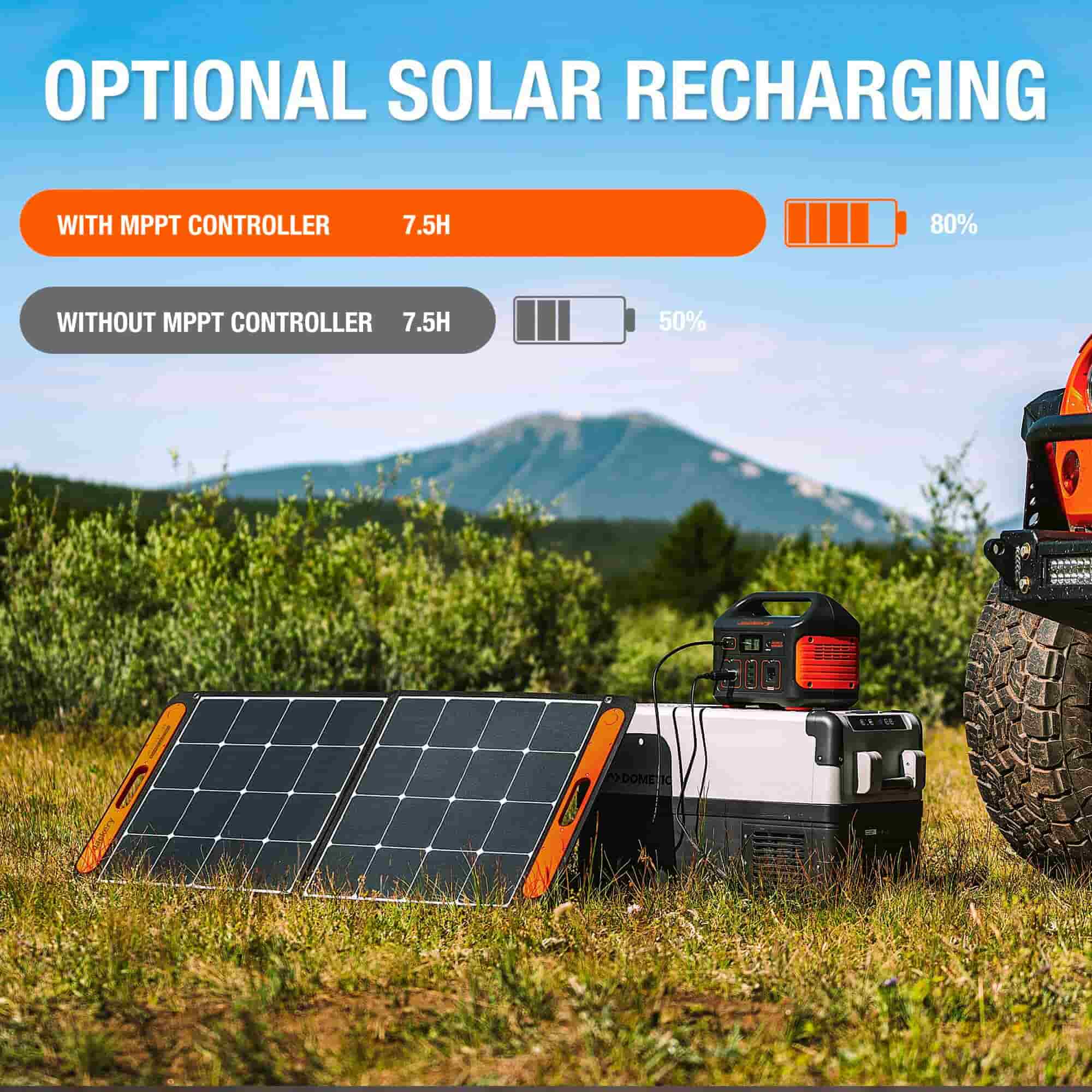

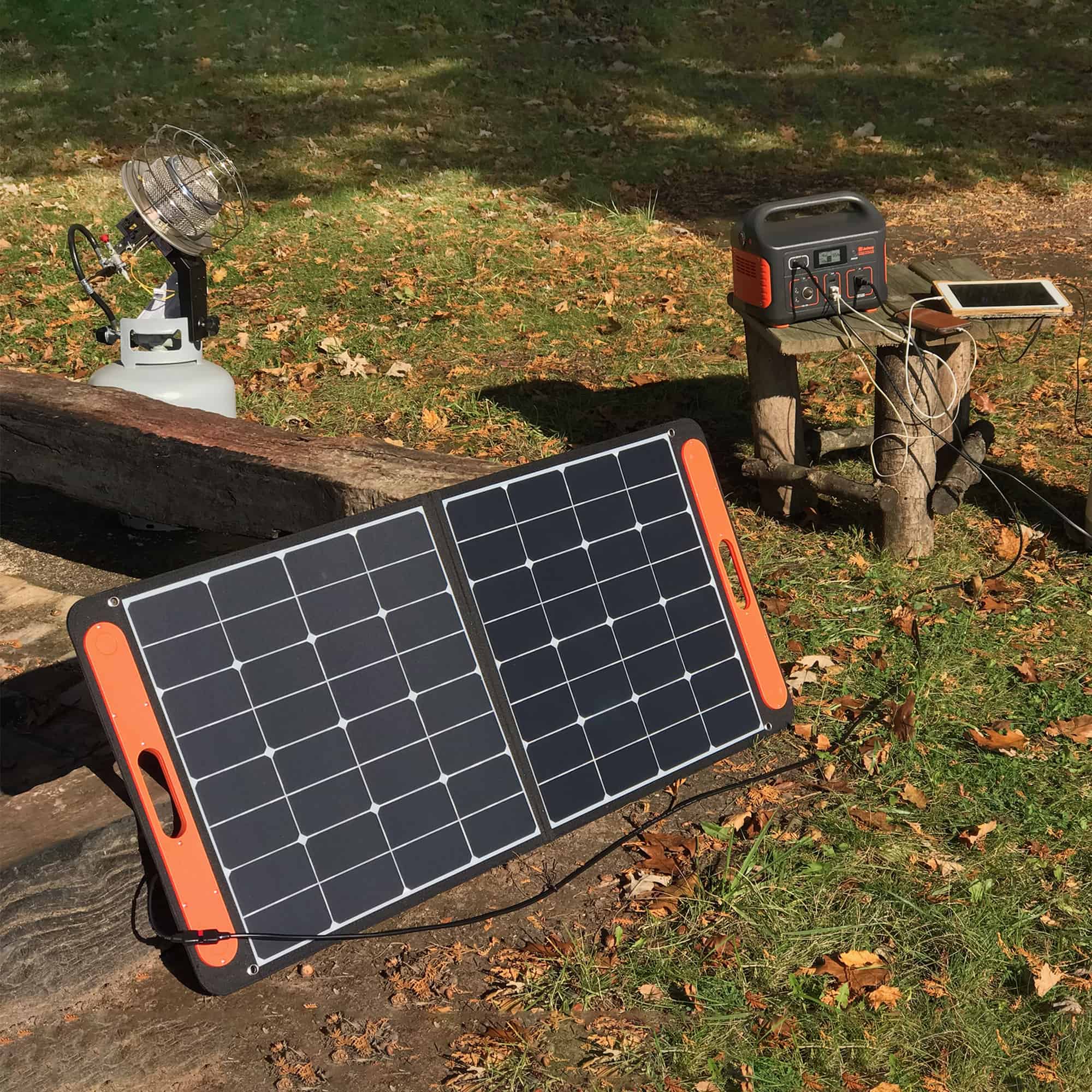

Connecting a SolarSaga 100W solar panel to the Explorer 500 Portable Power Station creates a solar generator. With our high-quality MPPT technology, the Explorer 500 can be fully charged under full sun in just 9.5 hours. With a Solar Generator setup, you can have an unlimited power source from the sun and always keep charged on the go.
Solar Recharging Steps:
1. Find the DC interface on the back of SolarSaga 100;
2. Connect the DC interface of SolarSaga 100 with the DC input of Explorer 500
Please Keep the Following in Mind While Solar Recharging:
1. Recharging time varies depending on location, temperature, weather, etc. Therefore, the actual recharge time may be different.
2. Keep your portable power station away from heat and direct sunlight to extend its life span during recharging.
The Jackery Explorer 500 offers power-to-go in a compact, lightweight design featuring multiple connections to charge your mainstream gear and more. Never worry about a wall outlet or long extension cords. So feel free to go and explore the great outdoors and run your appliances like a blender, pellet smoker, projector, and tools. It can also be used as an emergency backup power supply to run lights, laptops, phones, a small fridge, a CPAP, and other devices in the event of a power outage.
Capacity:
Cell Chemistry:
Lifecycle:
Management System:
518Wh (21.6V, 24Ah)
Li-ion NMC
500 cycles to 80%+ capacity
BMS, Over Voltage Protection, Short Circuit Protection
AC Output:
USB-A Output:
Car Output:
DC Output:
DC Input:
110VAC, 60Hz, 500W (1000W Surge)
5V, 2.4A
12V, 10A
12V, 7A (6.5mm*1.4mm)
12V-30V (100W Max)
AC Adapter:
12V Car Adaptor:
Electric Generator:
SolarSaga 100W Solar Panel:
7.5 Hours
7.5 Hours
7.5 Hours
9.5 Hours
Weight:

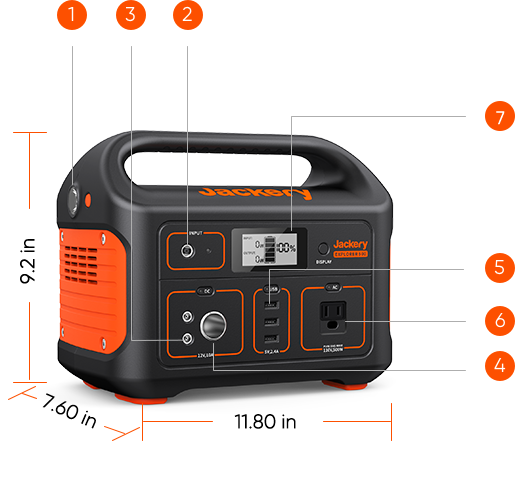

Dimensions (LxWxD):
Operating Usage Temperature:
Certification:
Warranty:
Optional Accessory:
13.32 lbs (6.04 kg)
11.8 x 7.6 x 9.2 in (30.1 x 19.3 x 24.2 cm)
14-104F (-10-40℃)
CEC, DOE, FCC, UL, ROHS, CA Prop 65
24 Months
Capacity: 518Wh (21.6V, 24Ah)
Cell Chemistry: Li-ion NMC
Lifecycle: 500 cycles to 80%+ capacity
Management System: BMS, Over Voltage Protection, Short Circuit Protection
AC Output: 110VAC, 60Hz, 500W (1000W Surge)
USB-A Output: 5V, 2.4A
Car Output: 12V, 10A
DC Output: 12V, 7A (6.5mm*1.4mm)
DC Input: 12V-30V (100W Max)
AC Adapter: 7.5 Hours
12V Car Adaptor: 7.5 Hours
Electric Generator: 7.5 Hours
SolarSaga 100W Solar Panel: 9.5 Hours
Weight: 13.32 lbs (6.04 kg)
Dimensions (LxWxD): 11.8 x 7.6 x 9.2 in (30.1 x 19.3 x 24.2 cm)
Operating Usage Temperature: 14-104F (-10-40℃)
Certification: CEC, DOE, FCC, UL, ROHS, CA Prop 65
Warranty: 24 Months
Optional Accessory: Jackery SolarSaga 100W Solar Panel
A: Please note that the AC output port can only charge/power devices that operate at less than 500-Watt. Once exceeding, the Explorer 500 will shut off automatically. Please refer to your device specification before purchase.
A: Working time = 500Wh* 0.85 / operating power of your device.
For reference, assuming power consumption of your device is 60W (might be a box fan), working time will be 500Wh*0.85/60w=7hrs (rough calculated) .
Please note: actual power consumption varies from different usages, please consult Jackery for better purchase decision.
A: Within 7.5 hours from an AC wall outlet; Also another two recharge backup choices for your convenience, recharge from car port around 16 hours, and around within 9.5 hours from Jackery Saga 100W solar panel (Sold Separately).
A: To check the charge level of the Explorer 500, refer to the LCD Battery Display.
A: Explorer 500 contains a battery pack which consists of an array of cylindri cal 18650 lithium-ion battery cells with high energy density.
A: Yes, you can use the Explorer 500 to charge devices, while it's being re-charged at the same time.
